Quick Details

  • Type: Other
  • Condition: New
  • Application: Chemical, Commodity, Food, Machinery & Hardware, Medical, Chemical, Commodity, Food, Medical..
  • Packaging Type: Cartons, Foil
  • Packaging Material: Metal, Paper
  • Automatic Grade: Automatic, Automatic
  • Driven Type: Electric
  • Voltage: 220V
  • Power: 1.5KW
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: FINENESS
  • Model Number: FDF-100
  • Weight: 2000KG
  • Dimension(L*W*H): 3000x1500x1600mm
  • Certification: CE/SGS/ISO9001:2000, CE/SGS/TUV/ISO9001:2000
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: carton machine
  • Other name: new pill blister cartoning machine
  • Air: Pressure: 0.5-0.8mpa
  • Application 2: Medical,Chemical,Pharmaceutical
  • Warranty: 4 years

Packaging & Delivery

Packaging Details pill blister cartoning machine package:WOODEN CASE....
Delivery Time Shipped in 20 days after payment






Introduction of Our products :

       Project



Parameters

Boxing speed

30-60boxes/min



Color box

Quality

300-450g/mm

Size                  (L x W x H)

(100-465)mm X (30-80)mm X (16-50)mm



Compressed air pressure

air pressure

0.5-0.8mpa

Air consumption

140-180L/min

Main motor power

220V  50HZ

Main motor power

1.5kw

Relative humidity

<70%

Dimensions (L x W x H)

3000x1500x1600mm

Machine weight

2000kg

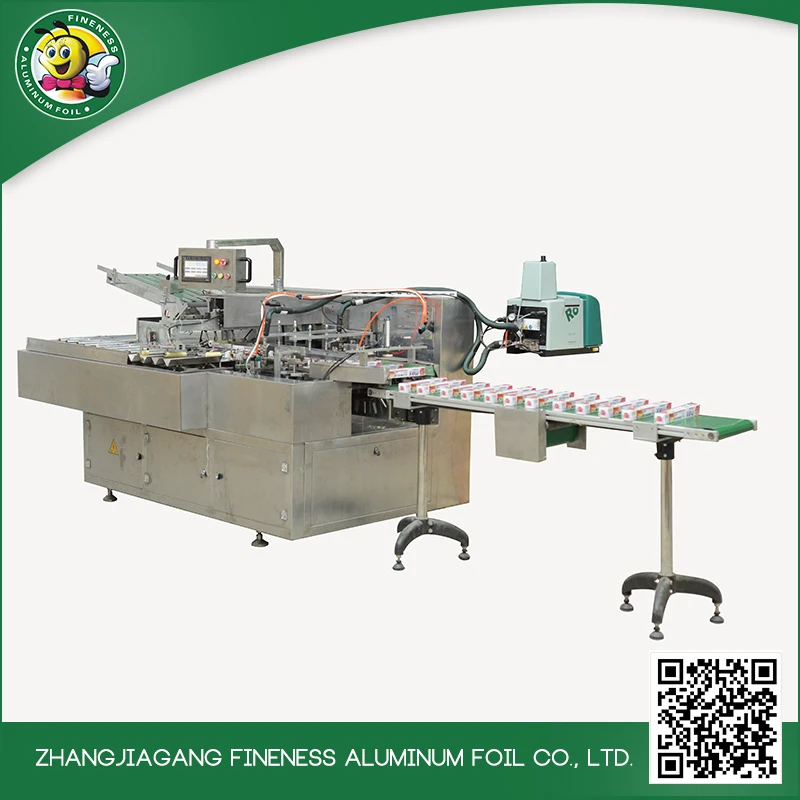

Can complete the following functions automatically; Feeding,Leaflet folding,Carton opening.Blister inserting,Leafting inserting, Batch number on cartons, Cartons sealing.etc



Packing ranges: Blisters, Bottles, and little things etc

Specifications of pill blister cartoning machine:

1. Automatic Cartoning machine
2.PLC and touch screen
3.Speed is  30-60boxes/min



4.Insert leaflet and product.


Instruction
Automatic cartoning  machine is suitable for blister cartoning,bottle, pouchs and
injection,medicine,cosmetis,condom.food.,tube,ointment,wrapped products.The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain.

Feature of pill blister cartoning machine:
1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2.Adopt human-machine operation system.
3.Automatically displaying device for trouble, speed and finished products counting.
4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5.No products not suction leaflet, no leaflet not suction carton .
6.Automatic detection and rejection device for lacking blister goods and leaflets.
7.Protecting automatically for overloading.
8.stable performance , operation is easy
